iPhone X fell heavily and the phone cannot be turned on for repair
Machine model: iPhone X
Malfunction: mobile phone Won’t Turn On

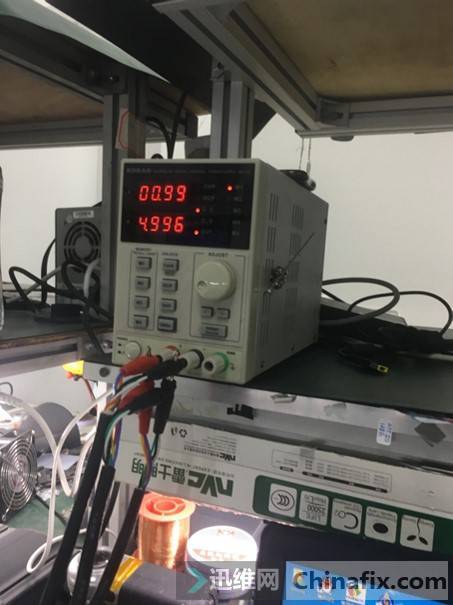

Maintenance process: disassemble the machine, power on and see the current as shown in the figure:

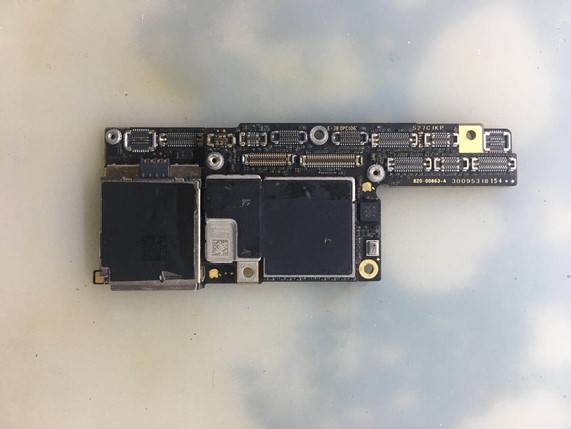

iPhone X fell heavily and the phone cannot be turned on for repair Figure 1.
Power up short-circuit current TC 15101,separate AP has OverLoad, repair Short circuit first, and smoke the whole board with Colophony (Solder).
iPhone X fell heavily and the phone cannot be turned on for repair Figure 2.

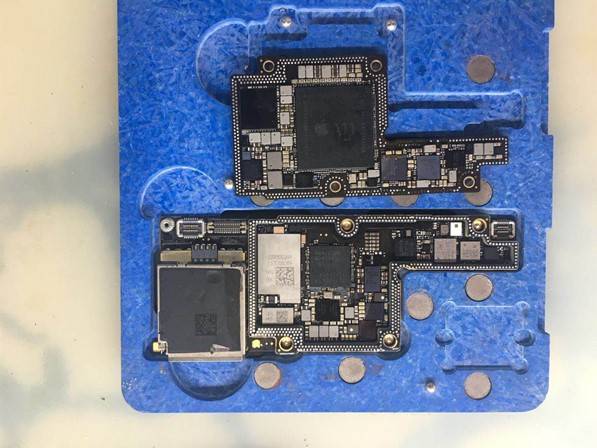

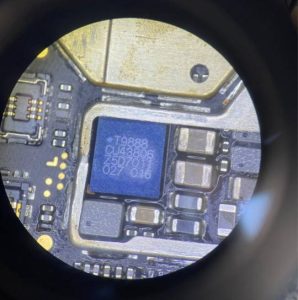

Main VCC filter Capacitor directly deducted,Connect the power supply not Short circuit. Then continue to repair the place where pad break off fell, and make up some useful points for welding.
iPhone X fell heavily and the phone cannot be turned on for repair Figure 3.
iPhone X fell heavily and the phone cannot be turned on for repair Figure 4.

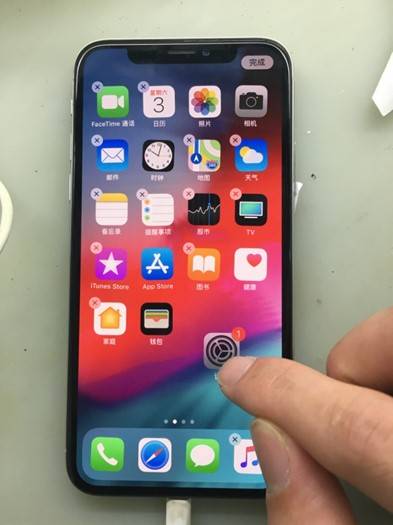

Installation test, normal function, maintenance finished.
iPhone X fell heavily and the phone cannot be turned on for repair Figure 5.
