HUAWEI Mate 30 has no sound after connecting Bluetooth

HUAWEI Mate 30 has no sound after connecting Bluetooth. After making up the phone, the WiFi chip is replaced, and the fault is fixed.

HUAWEI Mate 30 has no sound after connecting Bluetooth

Machine model: HUAWEI Mate 30

Malfunction: HUAWEI Mate 30 is connected to Bluetooth, but there is no sound when making phone calls.

116;e0cccf1afbf300d06395db6e01851652

HUAWEI Mate 30 has no sound after connecting Bluetooth Figure 1.

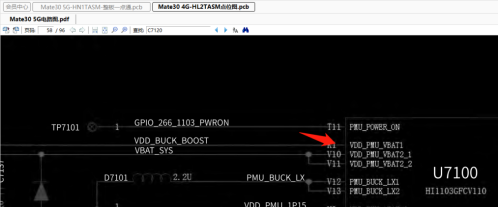

Maintenance process: disassemble the motherboard and find that the WiFi chip has been repaired at home, but it has not been repaired. Remove the WiFi chip and type the value line diode value. No problem was found, but a dot dropped.

210;

HUAWEI Mate 30 has no sound after connecting Bluetooth Figure 2.

Make up the lost PAD, and use Solder Mask to handle UV curable and insulation.

264;IMG_256

HUAWEI Mate 30 has no sound after connecting Bluetooth Figure 3.

Replace a new WiFi chip, boot into the system and retest, and the fault is perfectly repaired.

326;b7e39b852d6c66c1cacb91eca22bc328

HUAWEI Mate 30 has no sound after connecting Bluetooth Figure 4.

357;2d0687fe7206130afa2f663518b0bd7e

HUAWEI Mate 30 has no sound after connecting Bluetooth Figure 5.
