Repair of Lenovo Xiaoxin notebook TAPE-C interface without charging

Repair of Lenovo Xiaoxin notebook TAPE-C interface without charging

Lenovo Xiaoxin TAPE-C is not charged, and the charging port, electric drill and file are modified. Make a small hole first, then fine-tune, try to achieve the factory standard, and then file it.

Machine model: Lenovo Xiaoxin notebook

Fault symptom: the TAPE-C interface of the notebook is not charged.

Maintenance of Lenovo Xiaoxin notebook TAPE-C interface without charging Figure 1

Maintenance process:

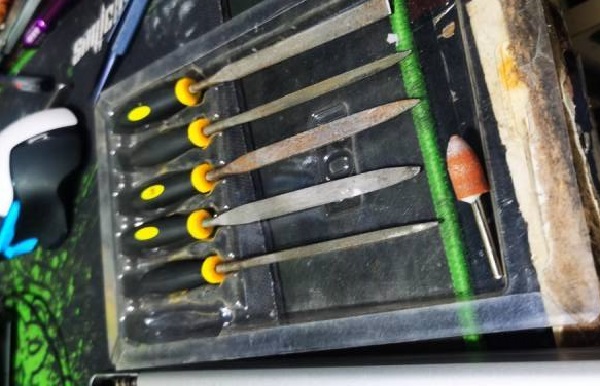

Lenovo Xiaoxin TAPE-C is not charged, and the charging port, electric drill and file are modified.

Maintenance of Lenovo Xiaoxin notebook TAPE-C interface without charging Figure 2

Maintenance of Lenovo Xiaoxin notebook TAPE-C interface without charging Figure 3

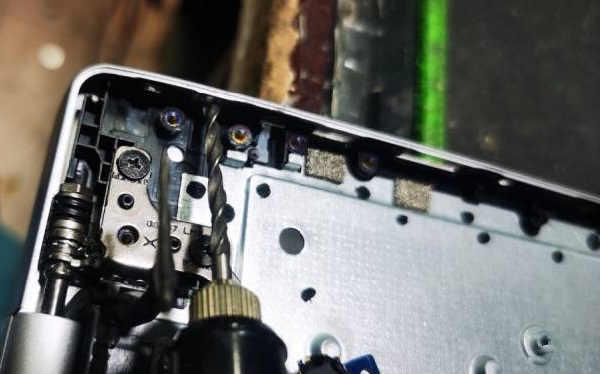

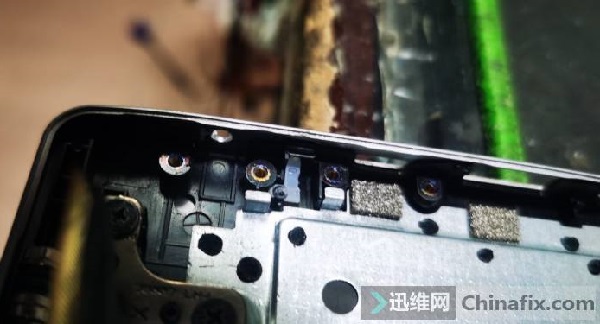

Hold it directly and feel the pulse to punch the hole, which is quite accurate.

Maintenance of Lenovo Xiaoxin notebook TAPE-C interface without charging Figure 4

Maintenance of Lenovo Xiaoxin notebook TAPE-C interface without charging Figure 5

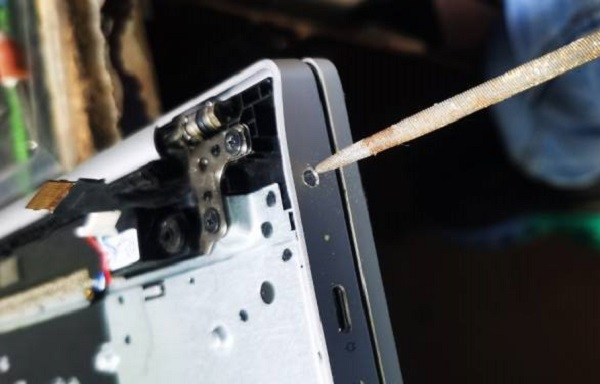

Make a small hole first, then fine-tune, try to achieve the factory standard, and then file it.

Maintenance of Lenovo Xiaoxin notebook TAPE-C interface without charging Figure 6

Maintenance of Lenovo Xiaoxin notebook TAPE-C interface without charging Figure 7

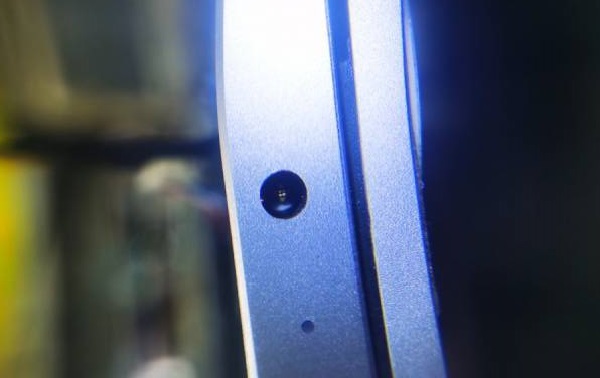

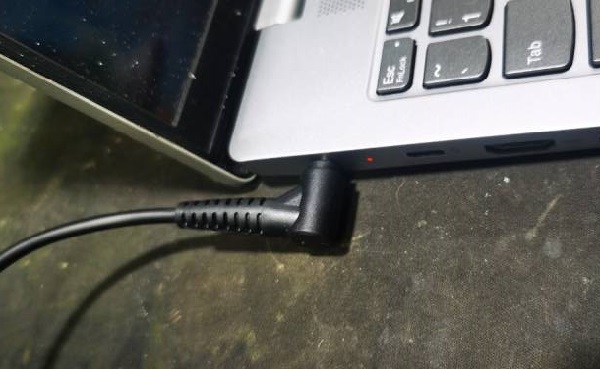

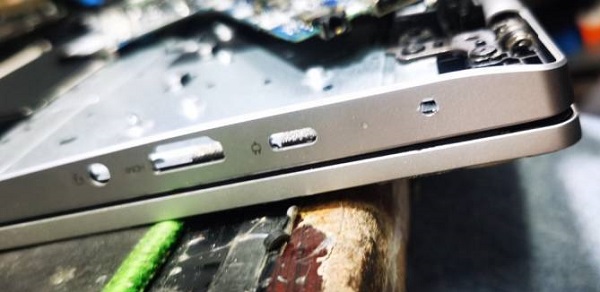

After numerous fine-tuning, the final effect is as follows:

Maintenance of Lenovo Xiaoxin notebook TAPE-C interface without charging Figure 8
