Smartisan R2 can’t take pictures

Smartisan R2 can’t take pictures.

Machine model: Smartisan R2

Fault: The Smartisan R2 cannot take pictures.

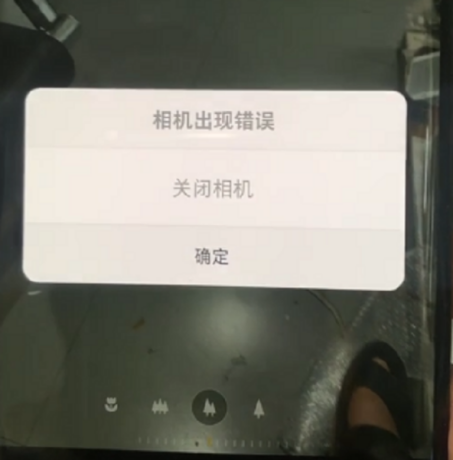

Repair process: After getting the phone and testing it, I opened the camera, but the phone prompted “camera error”, so I needed to turn off the camera and could not take pictures.

Smartisan R2 can’t take pictures Figure 1.

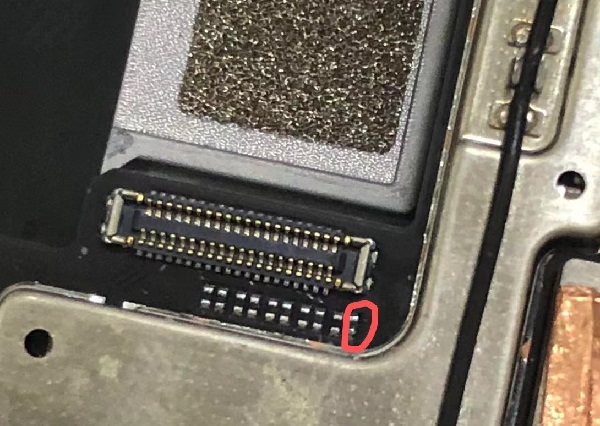

Dismantling the phone to remove the motherboard, I found a resistor snapped off the side of the camera mount.

Smartisan R2 can’t take pictures Figure 2.

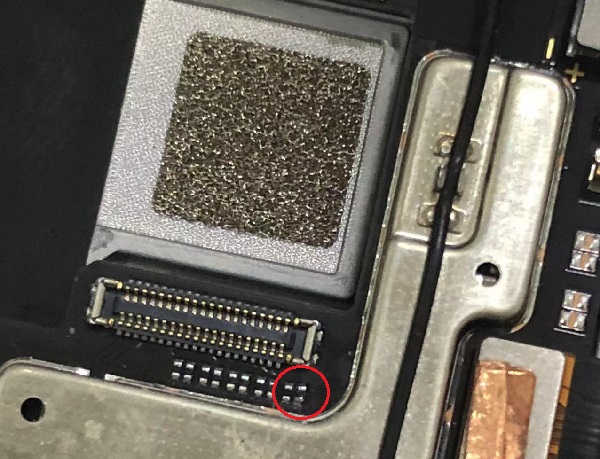

After replacing the resistor with a resistor of the same type and putting the motherboard back into the phone, the photo function returned to normal and the fault was fixed perfectly.

Smartisan R2 can’t take pictures Figure 3.
