Huawei P10 Plus mobile phone Won’t Turn On repair
Machine model: Huawei P10 Plus
Customer description: mobile phone Won’t Turn On.
Test results: The starting current of mobile phone Won’t Turn On is normal and the current is set at 90ma.
Failure analysis: The failure of stop at Fixed current is generally caused by the abnormal operation of the CPU and Nand of the mobile phone. In general, according to the current of change of the observed current, the faulty chip can be roughly locked. According to the current of change situation, it is preliminarily judged that the CPU memory can not work normally.

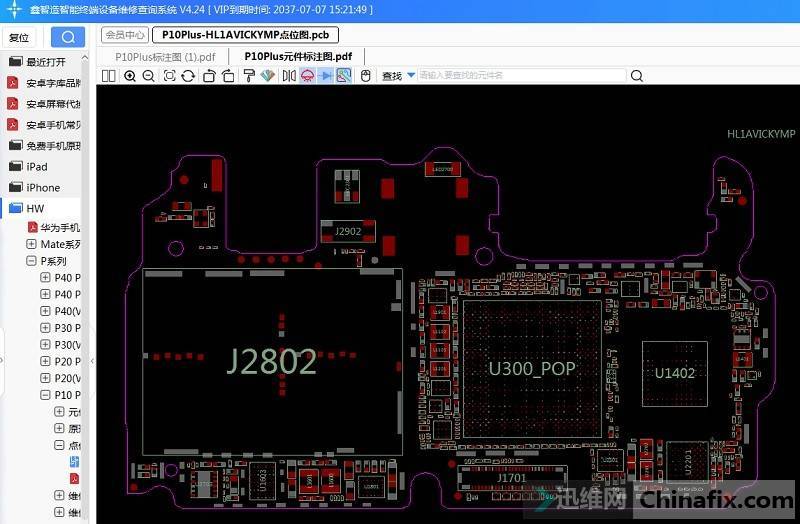

Huawei P10 Plus mobile phone Won’t Turn On repair figure 1.
After reinstalling REBALLING, the memory was repaired.
Huawei P10 Plus mobile phone Won’t Turn On repair figure 2.
