Redmi 10x mobile phone no booting repair

Redmi 10x mobile phone no booting, after compensating the resistance, it starts up normally and the fault is repaired.

Machine model: Redmi 10x
Fault phenomenon: mobile phone no booting
Maintenance process:

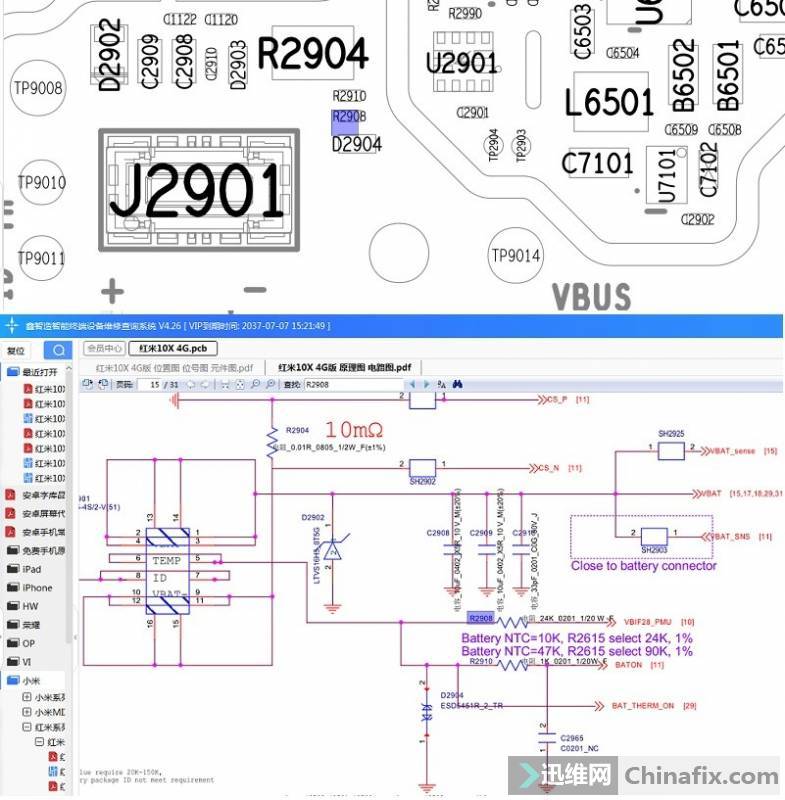

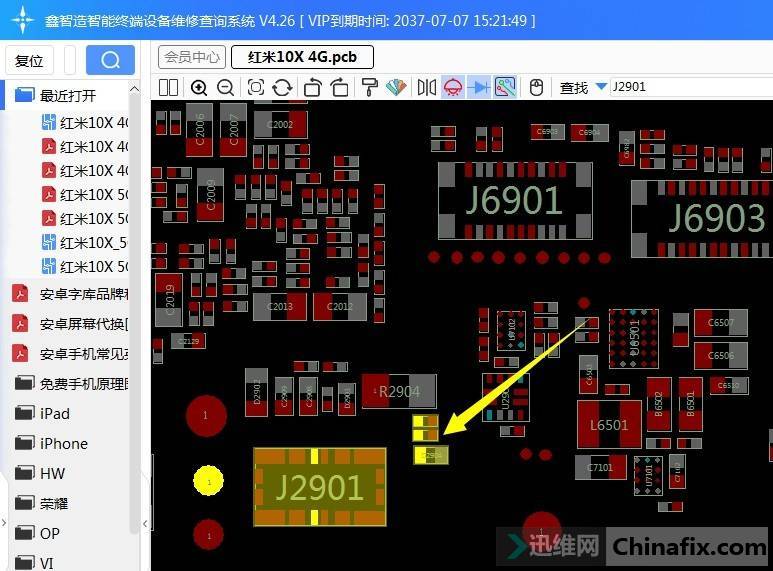

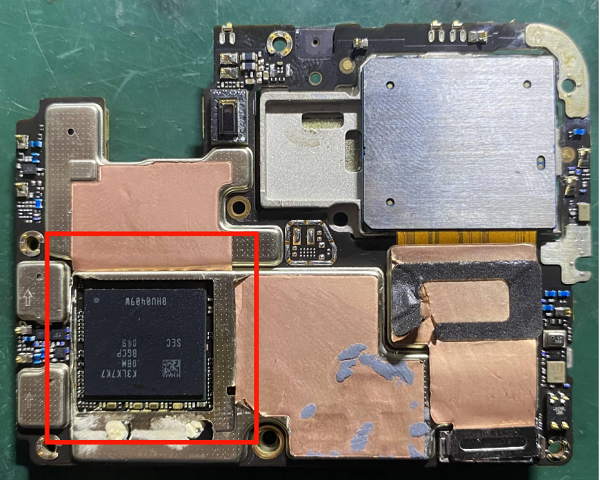

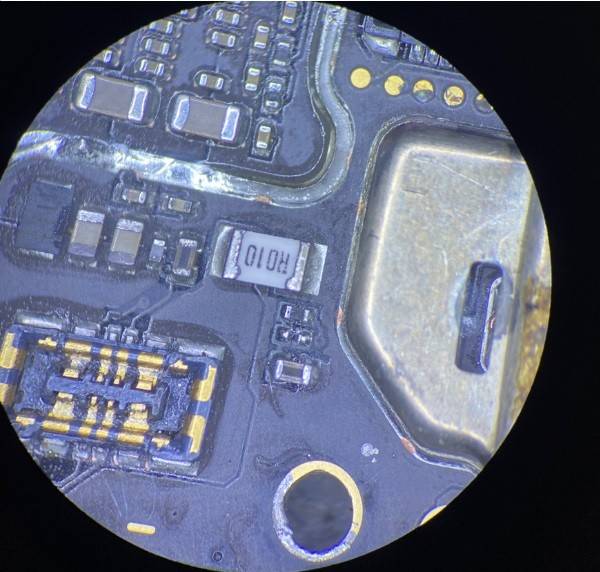

Previously repaired Redmi 10x mobile phone no booting, remove the motherboard and connect the positive and negative poles of switch. It is found that this device should be able to start up, because Xiaomi has no battery data, and the Won’t Turn On is on, but the battery is still on. The microscope observation shows that the resistance of pin is detected by short-circuit. This shows that schematic is a 24K resistance, which cannot be short-circuit, and it can be started normally by compensating the resistance.
