iPhone 6 doesn’t charge repair
Machine model: iPhone 6
Malfunction: the phone does not charge.
Maintenance process: disassemble the machine, power up switch with DC power supply, and take-off current is 250mA.USB management chip is damaged, so replace it.

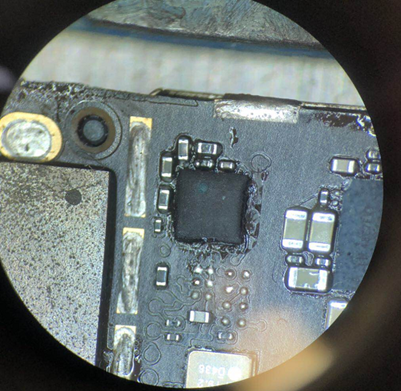

iPhone 6 doesn’t charge repair Figure 1.

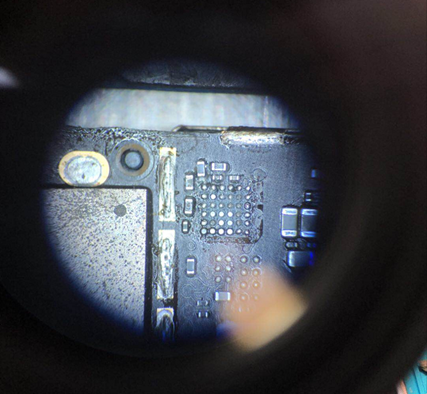

Remove USB management chip.
iPhone 6 doesn’t charge repair Figure 2.

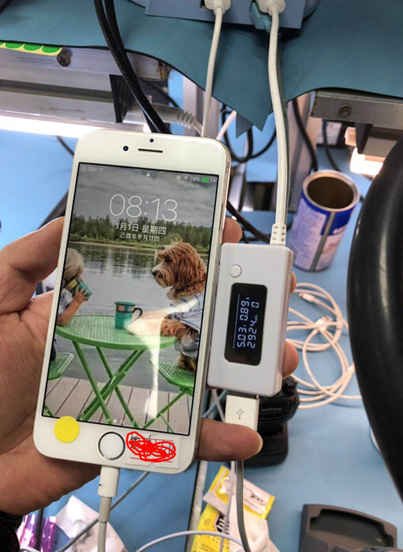

Change the machine to test, all functions are normal, and the fault is repaired.
iPhone 6 doesn’t charge repair Figure 3.
