Huawei Honor v10 Won’t Turn On repair
Machine model: Huawei Honor v10
Malfunction: Red light no booting
Maintenance process:
Honor v10 CPU counts from the edge to the inside. The 8th point on the edge is disconnected without diode value, the startup current is set between 70 and 80 mA, and the main board lights red light no booting. Dig down from the CPU disconnection point to the third layer of CPU. With diode value, then start the diode value coil and then Jump wire UV curable to install RAM.mobileThe fault is relieved. It’s turned on perfectly.

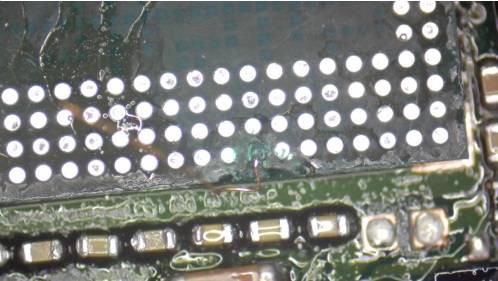

Huawei Honor v10 Won’t Turn On repair Figure 1.

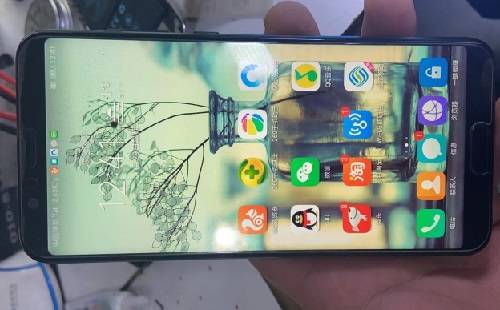

Huawei Honor v10 Won’t Turn On repair Figure 2.
Huawei Honor v10 Won’t Turn On repair Figure 3.
