An A320 motherboard does not display when it is turned on, and sometimes the transfer restarts

An A320 motherboard does not display when it is turned on, and sometimes the transfer restarts.

First, the CPU power supply and the main memory power supply are not short-circuited, so the CPU power supply 1.3 and the main memory power supply 1.2 are normal.

So I started to check that the power supply of the memory is 2.5 for VPP, 0.6 for VREF, 0.6 for VTTDDR and 2.5 for SPD. So I found that the SPD power supply is not right, and the ground was measured as 6, which found the problem.

So I used my more than two thousand ocean thermal imager.

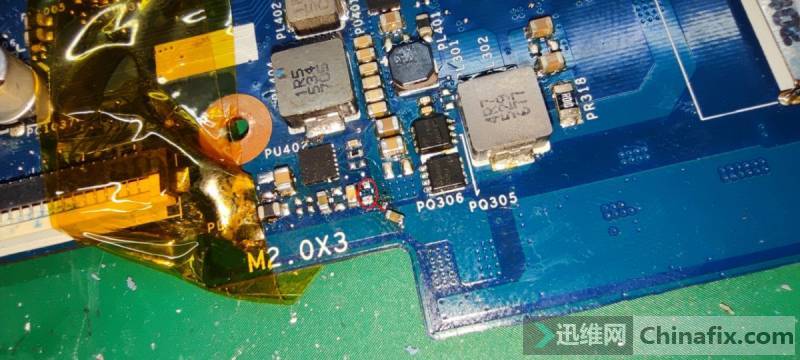

So I found an APL5933C chip as the culprit. Then it is to buy the chip and then change the fault.
